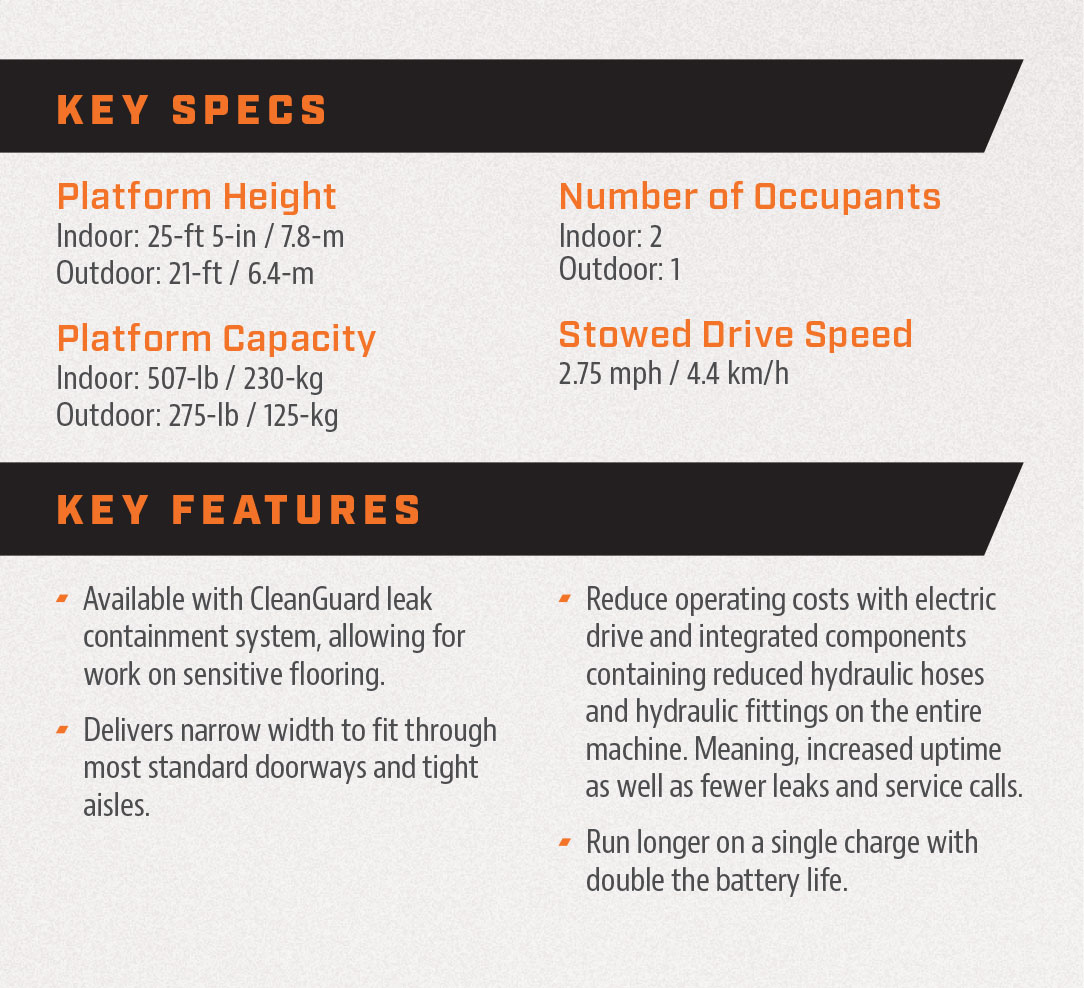

Key Specs
Platform Height
Indoor: 25-ft 5-in / 7.8-m
Outdoor: 21-ft / 6.4-m
Number of Occupants
Indoor: 2
Outdoor: 1
Platform Capacity
Indoor: 507-lb / 230-kg
Outdoor: 275-lb / 125-kg
Stowed Drive Speed
2.75 mph / 4.4 km/h
Key Features
- ›Available with CleanGuard leak containment system, allowing for work on sensitive flooring.
- ›Delivers narrow width to fit through most standard doorways and tight aisles.
- ›Reduce operating costs with electric drive and integrated components containing reduced hydraulic hoses and hydraulic fittings on the entire machine. Meaning, increased uptime as well as fewer leaks and service calls.
- ›Run longer on a single charge with double the battery life.
Accessories & Options
›4 x 6V AGM Batteries, 220 ah
›900W Inverter
›Anti-Vandalism PKG
›CleanGuard® Leak Containment
›ClearSky™
›Coiled Platform Control Box Cable
›Drive Motor Covers
›Dual Flashing Amber Beacons – LED
›Eagle Performance Charger
›Flashing Amber Beacon – LED
›JLG® Mobile Control
›MDI (Ground)
›Panel Carrier
›Pipe Racks
›QuikAccess Platform
›SkySense® Enhanced Detection System
›White Noise Alarm
Standard Specifications
| Performance | Indoor | Outdoor |
|---|---|---|
| Platform Height (Elevated) | 25-ft 5-in / 7.8-m | 21-ft / 6.4-m |
| Platform Capacity | 507-lb / 230-kg | 275-lb / 125-kg |
| Capacity on Platform Extension | 265-lb / 120-kg | 265-lb / 120-kg |
| Number of Occupants | 2 | 1 |
| Lift / Lower Time (No Load) | 33/36 seconds | 33/36 seconds |
| Lift / Lower Time (Rated Load) | 39/29 seconds | 39/29 seconds |
| Maximum Drive Height | 21-ft / 6.4-m | 21-ft / 6.4-m |
| Weight* | 4,400-lb / 1,996-kg | 4,400-lb / 1,996-kg |
| Max. Ground Bearing Pressure | 107 psi / 7.5 kg/cm² | 107 psi / 7.5 kg/cm² |
| Drive Speed (Lowered) | 2.75 mph / 4.4 km/h | 2.75 mph / 4.4 km/h |
| Drive Speed (Raised) | 0.5 mph / 0.8 km/h | 0.5 mph / 0.8 km/h |
| Gradeability | 25% | 25% |
| Max Tilt Rating (Side-to-Side) | 1.5 Degrees | 1.5 Degrees |
| Max Tilt Rating (Fore and Aft) | 3.5 Degrees | 3.5 Degrees |
| Turning Radius (Inside) | Zero | Zero |
| Turning Radius (Outside) | 88.2-in / 2.24-m | 88.2-in / 2.24-m |
*Certain options or country standards increase weight
Power
| Batteries | 4 x 6V 220 amp-hr |
| Charger | 27 Amp |
| Drive | 24V DC |
Tires
| Standard | 16 x 5-in / 406 x 125-mm |
Brakes
| Type | Multi-Disc Friction |
Hydraulic System
| Capacity | 3.2 gal / 12 L |
| Pump | Fixed Displacement Gear |
Standard Features
›27 amp Multi-Function Universal Charger
›AC Receptacle in Platform
›Active Pothole Protection System
›All Motion Alarm
›Analyzer Port for Diagnostics
›Battery Condition Indicator
›CAN-Enabled Charger
›Diamond Tread Steel Deck
›Dynamic Braking
›Electric Drive
›Foot-Actuated Deck Extension
›Fork Lift Pockets
›Greaseless Kingpin Joints
›Horn
›Hourmeter
›Lanyard Attach Points
›Lifting and Tie Down Points
›Load Sensing System
›Lubrication Free Scissor Arm Bushings
›Manual Descent Cable
›Movable, Removable Platform Control
›Nickel Plated Pins
›Proportional Controls
›QuikFold Rails
›Removable Ladder
›Scissor Maintenance Prop
›Self-Closing Gate
›Steel Swing-Out Doors
›Tilt Alarm and Light
›USB Charger & Phone Holder
›Variable Tilt Visual Zone Indicator

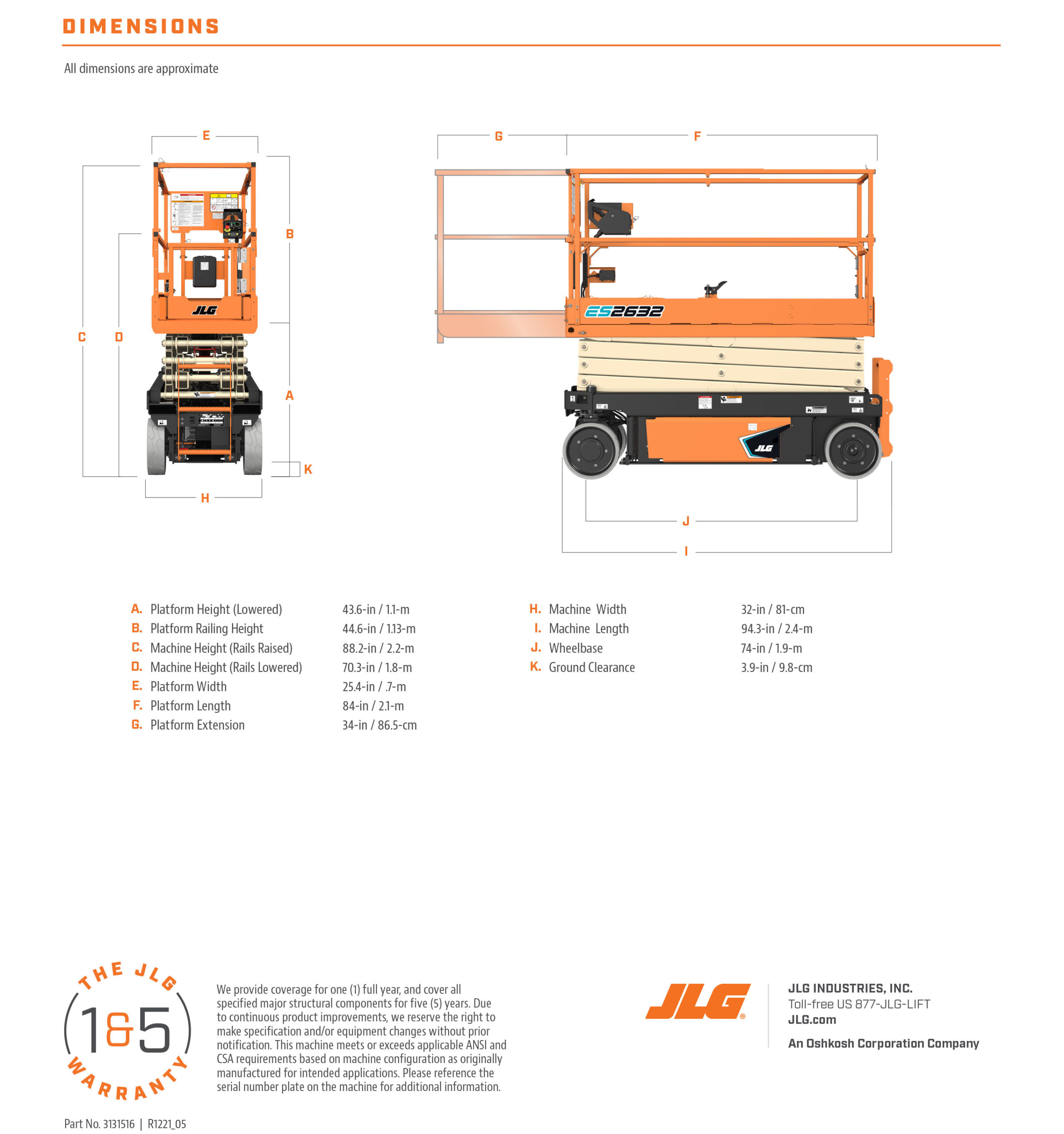

A.Platform Height (Lowered): 43.6-in / 1.1-m
B.Platform Railing Height: 44.6-in / 1.13-m
C.Machine Height (Rails Raised): 88.2-in / 2.2-m
D.Machine Height (Rails Lowered): 70.3-in / 1.8-m
E.Platform Width: 25.4-in / .7-m
F.Platform Length: 84-in / 2.1-m
G.Platform Extension: 34-in / 86.5-cm
H.Machine Width: 32-in / 81-cm
I.Machine Length: 94.3-in / 2.4-m
J.Wheelbase: 74-in / 1.9-m
K.Ground Clearance: 3.9-in / 9.8-cm
