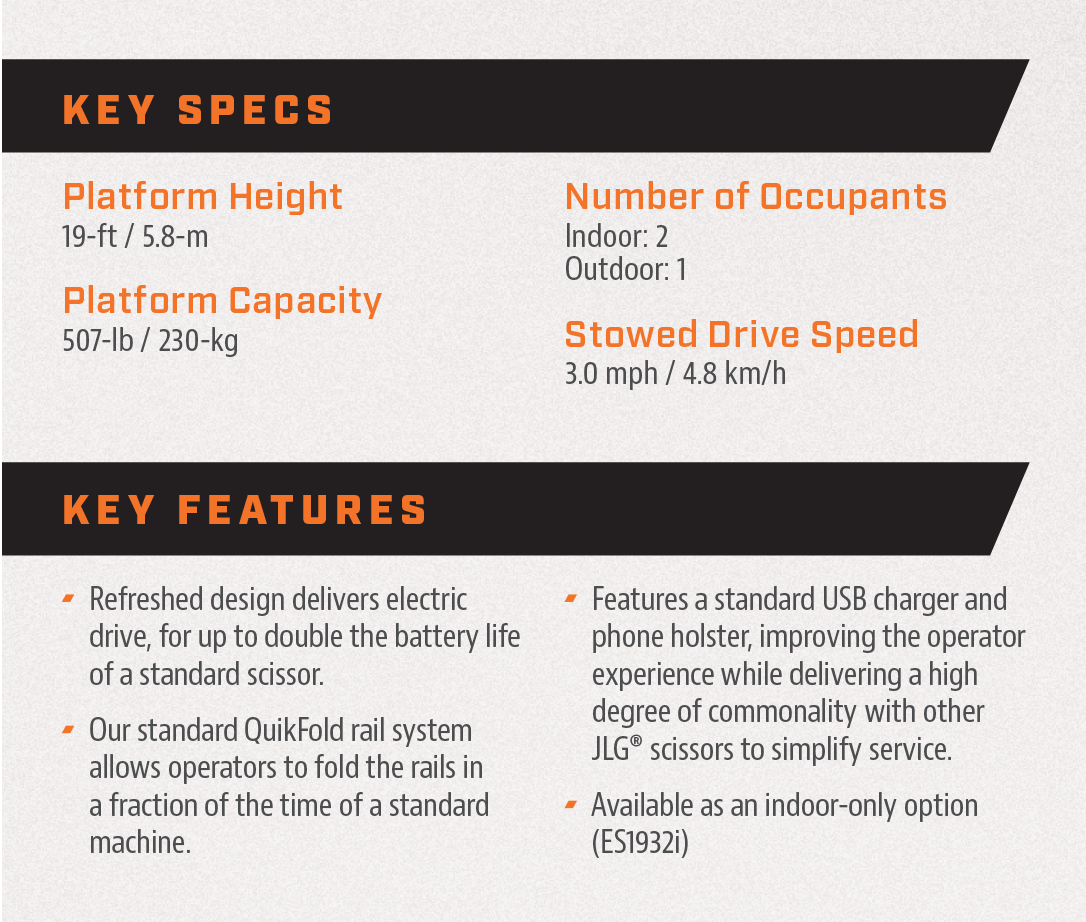

Key Specs
Platform Height
19-ft / 5.8-m
Number of Occupants
Indoor: 2
Outdoor: 1
Platform Capacity
507-lb / 230-kg
Stowed Drive Speed
3.0 mph / 4.8 km/h
Key Features
- ›Refreshed design delivers electric drive, for up to double the battery life of a standard scissor.
- ›Our standard QuikFold rail system allows operators to fold the rails in a fraction of the time of a standard machine.
- ›Features a standard USB charger and phone holster, improving the operator experience while delivering a high degree of commonality with other JLG® scissors to simplify service.
- ›Available as an indoor-only option (ES1932i)
Accessories & Options
›4 x 6V AGM Batteries, 220 ah
›900W Inverter
›Anti-Vandalism PKG
›CleanGuard® Leak Containment
›Coiled Platform Control Box Cable
›Drive Motor Covers
›Dual Flashing Amber Beacons – LED
›MDI (Ground)
›Panel Carrier
›Pipe Racks
›QuikAccess Platform
›SkySense® Enhanced Detection System
›White Noise Alarm
Standard Specifications
| Performance | Indoor | Outdoor |
|---|---|---|
| Platform Height (Elevated) | 19-ft / 5.8-m | 19-ft / 5.8-m |
| Platform Capacity | 507-lb / 230-kg | 507-lb / 230-kg |
| Capacity on Platform Extension | 265-lb / 120-kg | 265-lb / 120-kg |
| Number of Occupants | 2 | 1 |
| Lift / Lower Time (No Load) | 20/27 seconds | 20/27 seconds |
| Lift / Lower Time (Rated Load) | 25/26 seconds | 25/26 seconds |
| Maximum Drive Height | Fully Elevated | Fully Elevated |
| Weight* | 3,450-lb / 1,565-kg | 3,450-lb / 1,565-kg |
| Max. Ground Bearing Pressure | 114 psi / 8.01 kg/cm² | 114 psi / 8.01 kg/cm² |
| Drive Speed (Lowered) | 3.0 mph / 4.8 km/h | 3.0 mph / 4.8 km/h |
| Drive Speed (Raised) | 0.5 mph / 0.8 km/h | 0.5 mph / 0.8 km/h |
| Gradeability | 25% | 25% |
| Max Tilt Rating (Side-to-Side) | 1.75 Degrees | 1.5 Degrees |
| Max Tilt Rating (Fore and Aft) | 3.75 Degrees | 3.75 Degrees |
| Turning Radius (Inside) | Zero | Zero |
| Turning Radius (Outside) | 66-in / 1.7-m | 66-in / 1.7-m |
*Certain options or country standards increase weight
Power
| Batteries | 4 x 6V 220 amp-hr |
| Charger | 27 Amp |
| Drive | 24V DC |
Tires
| Standard | 12.7 x 4-in / 323 x 102-mm |
Brakes
| Type | Multi-Disc Friction |
Hydraulic System
| Capacity | 1.85 gal / 7 L |
| Pump | Fixed Displacement Gear |
Standard Features
›27 amp Multi-Function Universal Charger
›AC Receptacle in Platform
›Active Pothole Protection System
›All Motion Alarm
›Analyzer Port for Diagnostics
›Battery Condition Indicator
›CAN-Enabled Charger
›ClearSky Smart Fleet™ Hardware (CS550)**
›Diamond Tread Steel Deck
›Dynamic Braking
›Electric Drive
›Foot-Actuated Deck Extension
›Fork Lift Pockets
›Greaseless Kingpin Joints
›Horn
›Hourmeter
›Lanyard Attach Points
›LED Motion/Amber Beacon (CS550)**
›Lifting and Tie Down Points
›Load Sensing System
›Lubrication Free Scissor Arm Bushings
›Manual Descent Cable
›Movable, Removable Platform Control
›Nickel Plated Pins
›Proportional Controls
›QuikFold Rails
›Removable Ladder
›Scissor Maintenance Prop
›Self-Closing Gate
›Steel Swing-Out Doors
›Tilt Alarm and Light
›USB Charger & Phone Holder
›Variable Tilt Visual Zone Indicator
**Standard beacon and ClearSky Smart Fleet hardware availability varies by model throughout 2023.

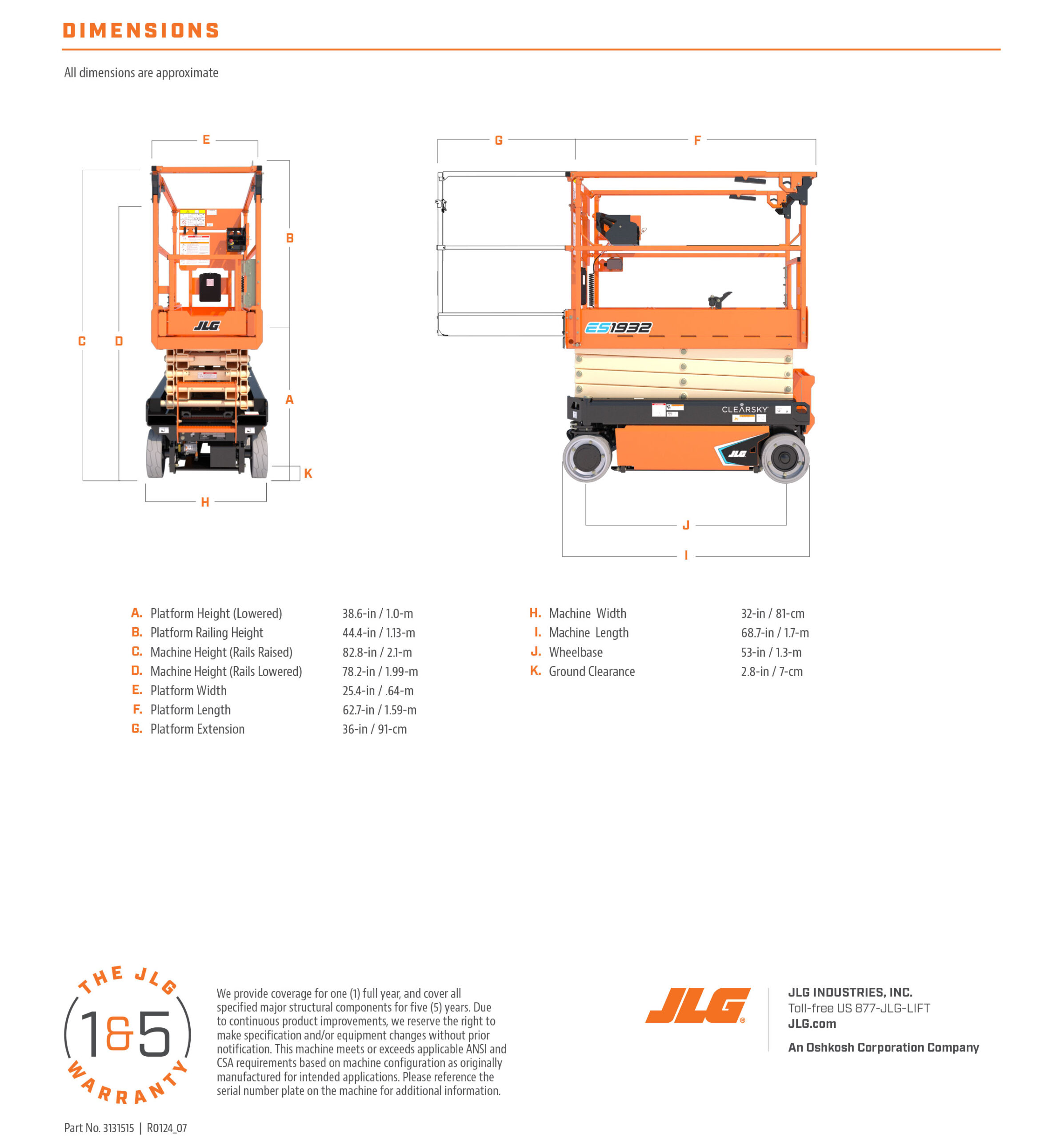

A.Platform Height (Lowered): 38.6-in / 1.0-m
B.Platform Railing Height: 44.4-in / 1.13-m
C.Machine Height (Rails Raised): 82.8-in / 2.1-m
D.Machine Height (Rails Lowered): 78.2-in / 1.99-m
E.Platform Width: 25.4-in / .64-m
F.Platform Length: 62.7-in / 1.59-m
G.Platform Extension: 36-in / 91-cm
H.Machine Width: 32-in / 81-cm
I.Machine Length: 68.7-in / 1.7-m
J.Wheelbase: 53-in / 1.3-m
K.Ground Clearance: 2.8-in / 7-cm
