Key Specs
Platform Height
13-ft / 3.8-m
Number of Occupants
Indoor: 2
Outdoor: 1
Platform Capacity
500-lb / 227-kg
Stowed Drive Speed
2.4 mph / 3.8 km/h
Key Features
- ›Lightweight for indoor work on sensitive flooring, such as data centers, while also usable for outdoor applications.
- ›Maneuver more efficiently with a compact footprint, delivering an industry-exclusive zero turning radius for work in tight spaces.
- ›Reduce operating costs with electric drive and integrated components containing reduced hydraulic hoses and hydraulic fittings on the entire machine. Meaning, increased uptime as well as fewer leaks and service calls.
- ›Complies with A92.20 ANSI regulations, achieving the highest standards.
Accessories & Options
›Anti-Vandalism Package
›CleanGuard™
›Coiled Platform Control Box Cable
›Dual Flashing Amber Beacons – LED
›Flashing Amber Beacon – LED
›Inverter
›JLG® Mobile Control
›MDI (Ground)
›SkySense®
Standard Specifications
| Performance | Indoor | Outdoor |
|---|---|---|
| Platform Height (Elevated) | 13-ft / 3.8-m | 13-ft / 3.8-m |
| Platform Capacity | 500-lb / 227-kg | 500-lb / 227-kg |
| Capacity on Platform Extension | 250-lb / 115-kg | 250-lb / 115-kg |
| Number of Occupants | 2 | 1 |
| Lift / Lower Time (No Load) | 17/17 seconds | 17/17 seconds |
| Lift / Lower Time (Rated Load) | 20/16 seconds | 20/16 seconds |
| Maximum Drive Height | Fully Elevated | Fully Elevated |
| Weight* | 1,984-lb / 900-kg | 1,984-lb / 900-kg |
| Max. Ground Bearing Pressure | 119 psi / 8.3 kg/cm² | 119 psi / 8.3 kg/cm² |
| Drive Speed (Lowered) | 2.4 mph / 3.8 km/h | 2.4 mph / 3.8 km/h |
| Drive Speed (Raised) | 0.5 mph / 0.8 km/h | 0.5 mph / 0.8 km/h |
| Gradeability | 25% | 25% |
| Max Tilt Rating (Side-to-Side) | 1.75 Degrees | 1.5 Degrees |
| Max Tilt Rating (Fore and Aft) | 3 Degrees | 3 Degrees |
| Turning Radius (Inside) | Zero | Zero |
| Turning Radius (Outside) | 55-in / 1.4-m | 55-in / 1.4-m |
*Certain options or country standards increase weight
Power
| Batteries | 2 x 12V 105 amp-hr |
| Charger | 27 Amp (Universal Algorithm) |
| Drive | 24V Electric |
Tires
| Standard | 10 x 3-in / 255 x 75-mm |
Brakes
| Type | Electric, Friction |
Hydraulic System
| Capacity | 1.3 gal / 5 L |
| Pump | Fixed Displacement Gear |
Standard Features
›22-in (55-cm) Foot-Actuated Deck Extension
›AC Receptacle in Platform
›Active Pothole Protection System
›All Motion Alarm
›Analyzer Port for Diagnostics
›Battery Condition Indicator
›DeltaQ - 27 amp Multi-Function Universal Charger
›Diamond Tread Steel Deck
›Dynamic Braking
›Fork Lift Pockets
›Greaseless Kingpin Joints
›Horn
›Hourmeter
›Lanyard Attach Points
›Lifting and Tie Down Points
›Load Sensing System
›Lubrication Free Scissor Arm Bushings
›Manual Descent Cable
›Movable, Removable Platform Control
›Nickel Plated Pins
›Proportional Controls
›Removable Ladder
›Scissor Maintenance Prop
›Self Closing Gate
›Steel Swing-Out Doors
›Tilt Alarm and Light
›Visual Variable Tilt Indicator

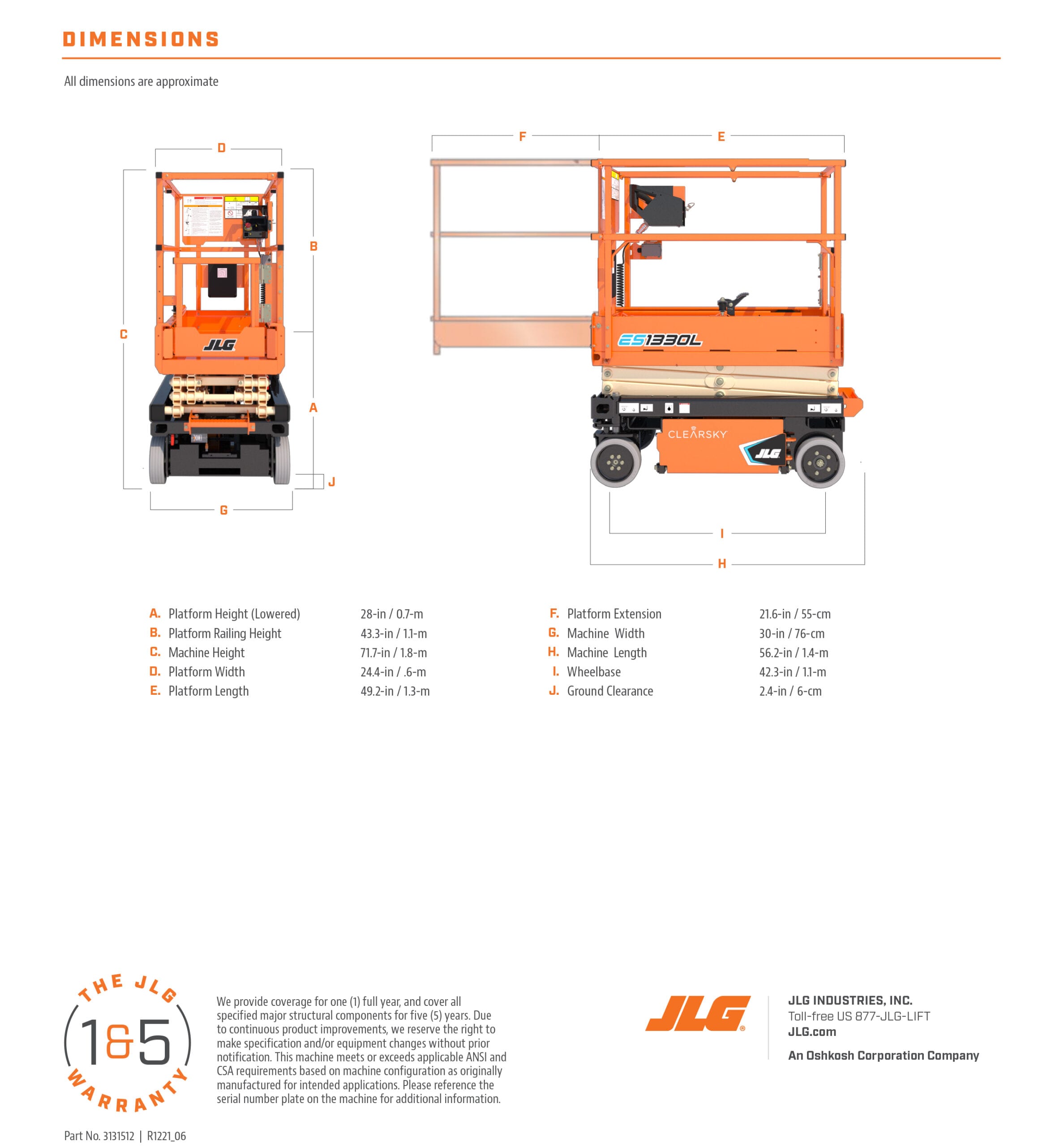

A.Platform Height (Lowered): 28-in / 0.7-m
B.Platform Railing Height: 43.3-in / 1.1-m
C.Machine Height: 71.7-in / 1.8-m
D.Platform Width: 24.4-in / .6-m
E.Platform Length: 49.2-in / 1.3-m
F.Platform Extension: 21.6-in / 55-cm
G.Machine Width: 30-in / 76-cm
H.Machine Length: 56.2-in / 1.4-m
I.Wheelbase: 42.3-in / 1.1-m
J.Ground Clearance: 2.4-in / 6-cm
