Key Specs
Platform Height
46-ft / 14.05-m
Horizontal Outreach
39-ft / 12-m
Drive Speed
4.25 mph / 6.8 km/h
Platform Capacity
600-lb / 272-kg
Key Features
- ›Delivers improved multifunction capability for increased productivity.
- ›Utilizes a new hood design to provide more durability and serviceability.
- ›Features a 600-lb platform capacity to take everything needed to the job site.
- ›Maximize horizontal reach with a straight boom.
Accessories & Options
›1/2-in Air Line to Platform
›AC Generator, 2500W or 4000W
›SkyPower® Package
›SkyWelder® Package
›SkyGlazier® Package
›Arctic Package¹
›Bolt On Fall Arrest System
›Cold Weather Package²
›Hostile Environment Package³
›Light Package
›Platform Mesh to Mid or Top Rail
›Aluminum or Plastic Platforms
›Drop Bar, 30 x 36-in, 30 x 60-in, 36 x 72-in, 36 x 96-in
›Fall Arrest, Rear Entry, 36 x 72-in, 36 x 96-in
›Inward Self-Closing Swing Gate, 30 x 60-in, 36 x 72-in, 36 x 96-in
›Tri-Entry, Drop Bar or Swing Gate, 36 x 72-in, 36 x 96-in
›SkySense® Enhanced Detection System
›Soft Touch System
›Storage Tray
1. Includes arctic hydraulic hoses, main boom cable, arctic hydraulic oil, extreme cold engine oil, fuel conditioner, engine block heater, battery blanket, glow plugs, hydraulic tank heater, and oversized footswitch.
2. Includes battery blanket, hydraulic tank heater, block heater.
3. Includes console cover, boom wipers and cylinder bellows.
Note: Some options may increase lead time, and some option combinations may not be available.
Standard Specifications
| Performance | Value |
|---|---|
| Platform Height | 46-ft / 14.05-m |
| Horizontal Outreach | 39-ft / 12-m |
| Swing | 360 Degrees Continuous |
| Platform Capacity (Unrestricted) | 600-lb / 272-kg |
| Platform Rotator | 180 Degrees Hydraulic |
| Jib | 6-ft / 1.83-m |
| Range of Articulation | 130 Degrees (+70, -60) |
| Weight* | 16,600-lb / 7,530-kg |
| Max. Ground Bearing Pressure | 60 psi / 4.76 kg/cm² |
| Drive Speed | 4.25 mph / 6.8 km/h |
| Gradeability | 45% |
| Tilt Cut Out | 5 Degrees |
| Turning Radius (Inside/Outside) | 6-ft 6.9-in (2.0-m) / 15-ft 10.5-in (4.8-m) |
*Certain options or country standards increase weight
Engine
| Dual Fuel | Kubota WG2503 — 61 hp / 45.5 kW |
| Diesel Fuel | Deutz D2.9L4 Tier 4 Final — 49 hp / 36.4 kW |
| Fuel Tank Capacity | 22 gal / 83.3 L |
Tires
| Standard | Foam Filled, 12x16.5 |
| Optional | Foam Filled Non-Marking, 12x16.5 |
| Foam Filled, 14x17.5 | |
| Foam Filled, Turf & Sand, 33/16LLx16.1 |
Hydraulic System
| Hydraulic Reservoir | 36 gal / 136.27 L |
| Auxiliary Power | 12V DC |
Standard Features
›36 x 96-in (.91 x 2.44-m) Platform
›5 Degree Tilt Alarm/Indicator Light
›12V-DC Auxiliary Power
›110V-AC Receptacle in the Platform
›180 Degree Hydraulic Platform Rotator
›ClearSky Smart Fleet™ Hardware (CS550)**
›Control ADE® System
›Four-Wheel Hydrostatic Drive
›Glow Plugs (Diesel Engines)
›Horn
›Hourmeter
›Improved Multi-Function Controls
›Interactive Display at Ground Controls
›Lifting/Tie Down Lugs
›LED Motion / Amber Beacon (CS550)**
›Motion Alarm
›Oscillating Axle
›Platform Console Machine Status Light Panel***
›Proportional Controls
›Reduced Time to Full Height
›SkyGuard SkyLine™
›Swing-Out Engine Tray
**Standard Beacon and ClearSky Smart Fleet Hardware Availability Varies by Model Throughout 2023.
***Provides Indicator Lights at Platform Control Console for System Distress, Low Fuel, Degree Tilt Light and Foot Switch Status.

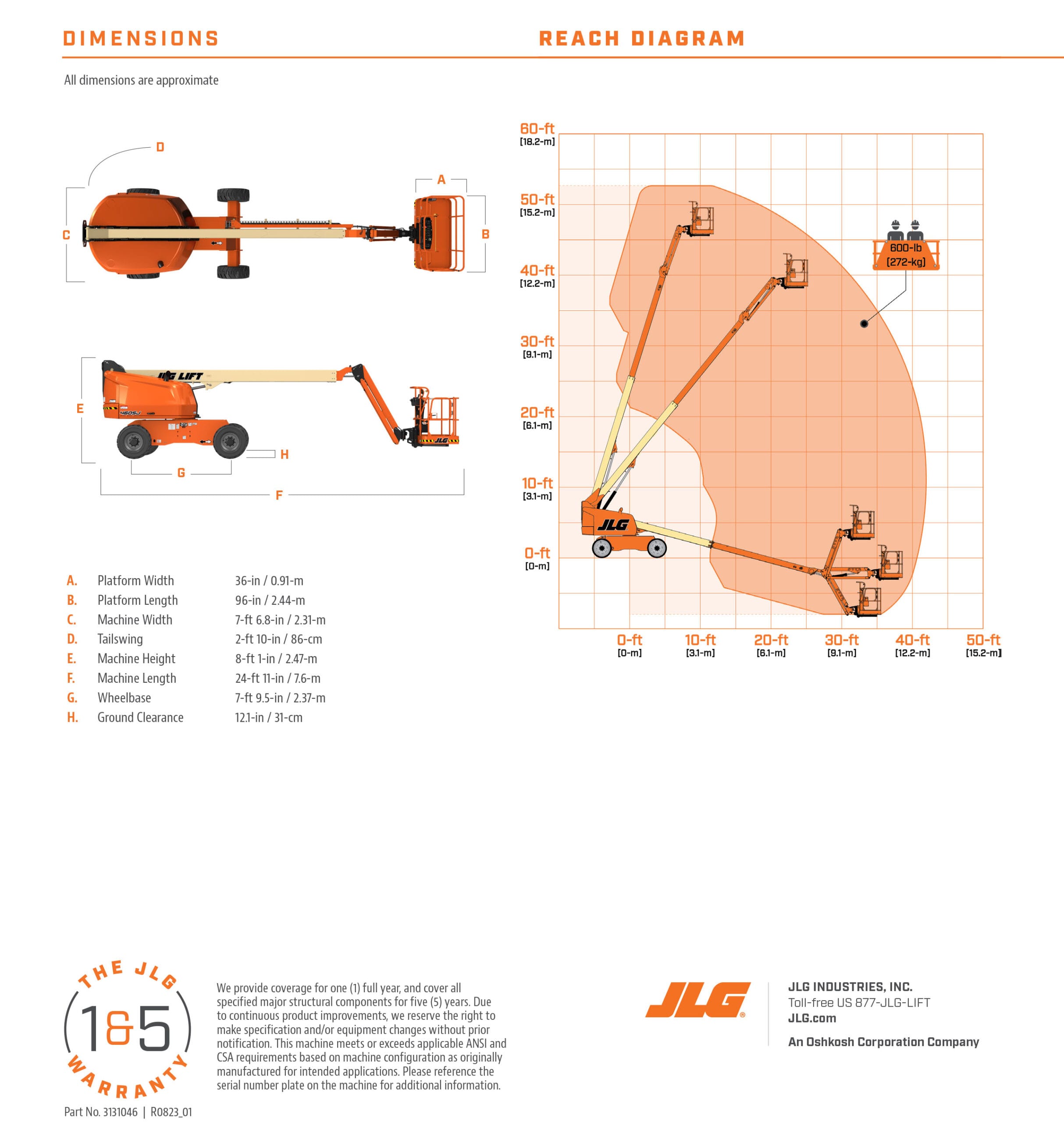

A.Platform Width: 36-in / 0.91-m
B.Platform Length: 96-in / 2.44-m
C.Machine Width: 7-ft 6.8-in / 2.31-m
D.Tailswing: 2-ft 10-in / 86-cm
E.Machine Height: 8-ft 1-in / 2.47-m
F.Machine Length: 24-ft 11-in / 7.6-m
G.Wheelbase: 7-ft 9.5-in / 2.37-m
H.Ground Clearance: 12.1-in / 31-cm
